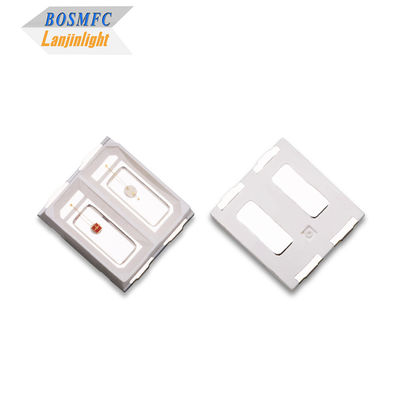

5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices.
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | BOSMFC |
| إصدار الشهادات: | Rohs, Reach |
| رقم الموديل: | 5050 SMD LED |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1000pcs |
|---|---|
| تفاصيل التغليف: | 1000 قطعة/بكرة، بكرة + حقيبة مضادة للكهرباء الساكنة + كرتون |
| وقت التسليم: | 5-15 أيام |
| شروط الدفع: | T/T ، Western Union ، PayPal |
| القدرة على العرض: | 500 مليون/شهر |
|
معلومات تفصيلية |
|||
| قوة: | 1 واط | لون ينبعث منه: | ضوء الأشعة تحت الحمراء أدى |
|---|---|---|---|
| الطول الموجي: | 630/460nm | التيار إلى الأمام: | 150MA |
| الجهد الأمامي: | 1.8-2.4V/2.8-3.4V | زاوية مشاهدة: | 120 درجة |
| مقاس: | 5.4*5.0*0.8ملم | عمر: | 50000 ساعة |
| ضمان: | 3 سنوات | العلامة التجارية رقاقة: | شريحة San'an / epistar |
| طَرد: | 1000pcs/بكرة | ||
منتوج وصف
5050 SMD LED dual color (Red & Blue) for high-power LED beauty light panel therapy devices.
This 5050 SMD LED is a dual-color component integrating high-performance red and blue chips, specifically engineered for professional and high-power LED beauty light panel therapy devices. It delivers targeted phototherapy, with red light (typically 630-660nm) promoting collagen production and skin rejuvenation, while blue light (typically 460-480nm) effectively targets acne-causing bacteria. The 5050 form factor ensures high luminous intensity and reliable performance for intensive skincare applications, making it an ideal core light source for clinical-grade and home-use facial treatment panels
Features:
- 99.99% gold wire bonding
- Long life span 50,000 hours
- Good heat dissipation
- Low-temp & lead free reflow soldering
- Instant light(less than 100ns)
- RoHS certification
Technical Parameters:
Electrical optical characteristics:(Ta=25°C)
| Parameter | Symbol | Color | Min | Typ | Max | Unit | Test Condition |
| Luminous intensity | Iv | 625nm
465nm |
--- |
20 10 |
--- | LM | IF=150mA |
| Dominant wavelength | 625nm
465nm |
620
460 |
--- | 630
470 |
nm | IF=150mA | |
| Forward voltage | VF | 625nm
465nm |
1.8
3.0 |
--- | 2.4
3.4 |
V | IF=150mA |
| Viewing angle | --- | 120 | --- | deg | IF=150mA | ||
| Reverse current | IR | --- | ---- | 5 | uA | IF=150mA |
| Operation Temperature | －40~+85℃ | Size | 5.4*5.0*0.8mm |
| Storage Temperature | －40~+100℃ | Packing | 1000pcs/reel |
Applications:
1. Acne Treatment: Blue light targets and eliminates acne-causing bacteria.
2. Anti-Aging: Red light stimulates collagen to reduce wrinkles and fine lines.
3. Skin Rejuvenation: Improves overall skin tone, texture, and radiance.
4. Wound Healing: Accelerates tissue repair and reduces inflammation.
5. Muscle Recovery: Soothes muscle soreness and enhances recovery post-exercise
